Mr. Hydrogen , Palladium - membrane hydrogen purifier
Description
Mr. hydrogen is a cost effective, convenient, solution for extracting ultra - pure hydrogen from standard bottled gas. Total impurity levels below .05 ppm are standard for continuous operation.
Mr. Hydrogen, palladium - membrane hydrogen purifiers are available in 120 V or 240 VAC versions, delivering from 1 to 50 liters per minute. For larger purifier outputs, Call us.
All Mr. Hydrogen products aim for enegy efficiency and simple ease of use. They include a fixed bleed that needs no customer adjustment. Larger – output units include a hydrogen to hydrogen heat exchanger for energy efficiency and minimize the temperature of the output hydrogen. All you need to do is connect up the purifier, turn on the on-switch, and turn on the source hydrogen. Mr. Hydrogen saves thousands of dollars per year by allowing the use of low grade of hydrogen in mission - critical applications.
Principle of Operation
The heart of the Mr. Hydrogen, is a membrane cell with palladium - coated palladium alloy tubes. Hydrogen from a customer’s source is dissociated into atomic hydrogen. This atomic hydrogen passes through the metals of the tube wall, while the metallic membranes exclude all impurities. The atoms recombine to ultra-pure hydrogen gas that is delivered to your application.
Applications
Mr. Hydrogen is intended for laboratory and small manufacturing use. For carrier gas or flame ionization gas in gas chromatography; for metallurgy, brazing, semiconductor manufacturing, hydrogen ation, catalysis, controlled atmospheres , and nuclear research.

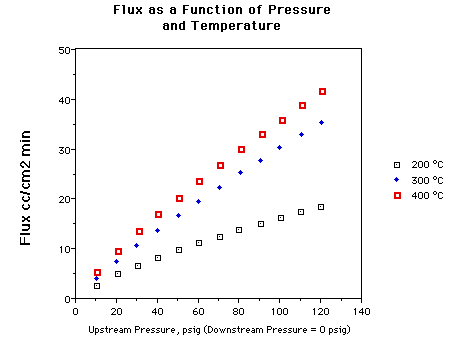

The guts of a great hydrogen purifier for laboratory and OEM customers. Output is listed for 200 psi upstream, 400 °C operation and delivery at 1 psi above atmosphere. For other temperatures and pressures, calculate the output using the flux chart.
